GFP Fluorescence Viewing Cabinet GFPfinder-2106RB

The GFP Fluorescence Viewing Cabinet GFPfinder-2106RB is also called the GFP Fluorescence Analysis Cabinet or Fluorescent Protein Viewing Cabinet. The GFP Fluorescence Viewing Cabinet GFPfinder-2106RB is specifically designed to excite and analyze green fluorescent proteins (GFP, eGFP), and it provides a portable dark cabinet for GFP fluorescence observation, replacing the traditional dark room.

Figure below: The standard package of GFP Fluorescence Viewing Cabinet GFPfinder-2106RB includes a GFP fluorescence viewing cabinet, a high-power GFP excitation lamp, and a GFP fluorescence viewing filter.

Product Features

● Choose one wavelength from 400nm, 450nm, 485nm, and 520nm.

● High-quality LEDs: 3 sets of high-power LEDs provide high-intensity excitation light and a large illumination area, making weak GFP fluorescence easily visible.

● Portable darkroom: GFP Fluorescence analysis usually needs to be carried out in a dark environment. With GFPfinder-2106, you can observe (even weak) GFP fluorescence anytime and anywhere without worrying about the ambient light being too bright.

● Convenient observation: No need to wear GFP fluorescence observation glasses. The GFP Fluorescence expression can be directly observed with the naked eye through the fluorescence viewing filter.

● The 38cm long filter provides a large viewing window for screening GFP samples.

● Excellent light-shielding effect: The GFP fluorescence viewing cabinet is made of black paint, which is opaque and does not emit fluorescence.

● Real-time sorting: When screening GFP samples, put your hands into the box to sort and count the GFP samples in real time.

● Lightweight: can be carried with one hand, portable and easy to use.

● Aluminum alloy shell: wear-resistant and durable, easy to clean.

● 1V1 online technical support.

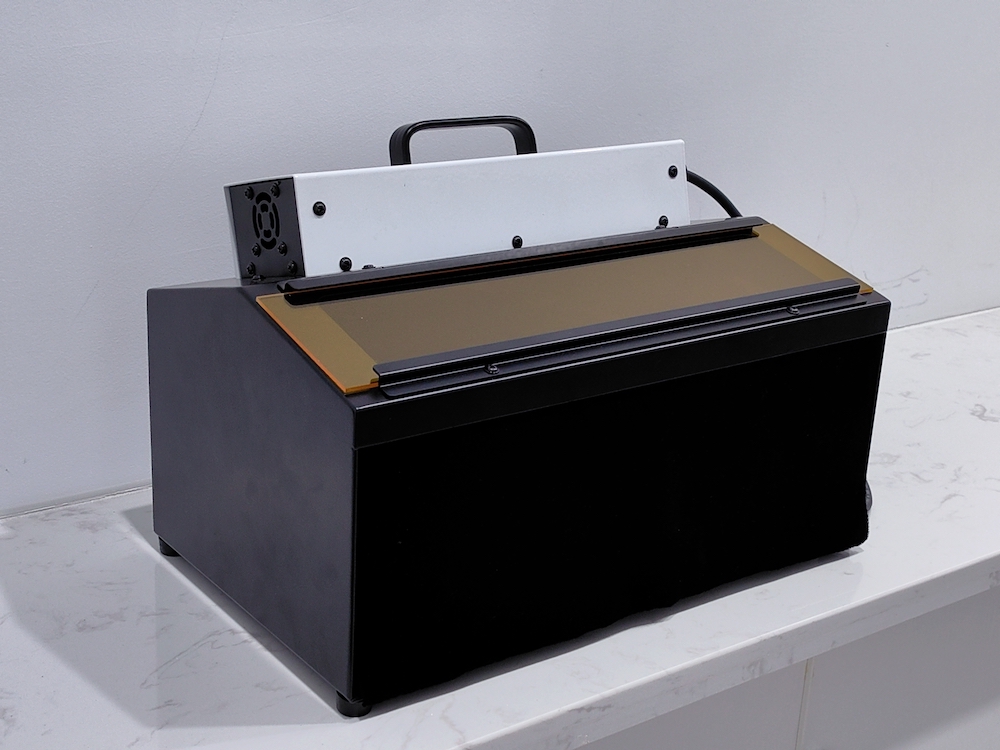

Figure below: the standard set of the GFP Fluorescence Viewing Cabinet GFPfinder-2106RB

Fluorescence Viewing Cabinets Selection Guide

The GFP Fluorescence Viewing Cabinets GFPfinder-2106 offer four excitation wavelengths for viewing different fluorescent proteins.

Technical Data

GFP Fluorescent Protein Excitation Lamp

● Choose any of the four wavelengths: 400nm, 450nm, 485nm, 520nm

● Light source: LED

● LED lifespan: over 50,000 hours

● Weight: 1.3 kg

● Dimension: 28.5 x 8.5 x 6 cm

● Power supply: 220VAC, 50Hz

GFP Fluorescence Viewing Cabinet

● Weight: 1.58 kg

● External Dim (L x W x H): 38.5 x 23 x 19 cm

● Internal Dim (L x W): 37 x 22 cm

● Filter size: 37.8 x 8.8 cm

Standard Package

The standard package of the GFP Fluorescence Viewing Cabinet GFPfinder-2106RB includes:

1. A portable fluorescence viewing cabinet

2. A high-power fluorescent protein excitation lamp

3. A fluorescence viewing filter

4. User manual

5. Certificate

6. Warranty card
