NDT 365nm Handheld UV-A Lamp XEPU-1605
365nm UV Lamp XEPU-1605 for Non-Destructive Testing (NDT)
The XEPU Handheld NDT UV Lamps are designed specifically for non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections. The NDT UV lamps feature high-intensity UV-A illumination, state-of-the-art LED technology, and ergonomical design. With five high-energy 365nm UV LEDs, XEPU-1605 NDT UV Lamp produces 7,000 μW/cm2 high intensity of UV-A illumination at 15 in (38 cm) and a wide coverage area up to 6 in (15 cm).

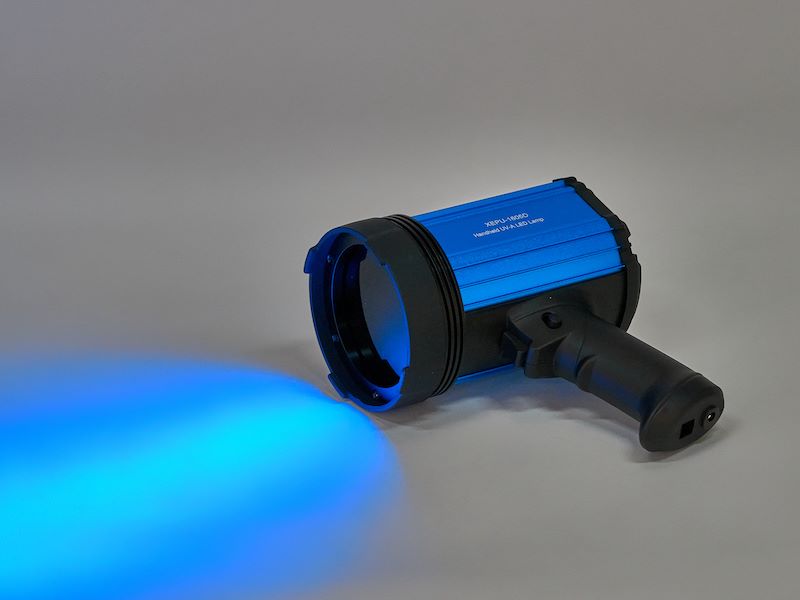

Figure below: 365nm NDT UV Lamp XEPU-1605 designed for easy handling and high performance
Product Features
● Five high-performance 365nm UV-A LEDs with life span over 50,000 hours
● Nominal steady state UV intensity of 7,000 µW/cm2 at 15 in (38 cm)
● Less than 18 lux of visible light emission
● Wide beam diameter of 6 in (15 cm)
● Long-lasting UV-A lenses for years of use
● Eliminates the need for a separate flashlight for visible spot checking with built-in LED white light function
● Single push-button operation for UV and white light
● Ergonomic handle, durable housing for high usage
● Cool running, fanless design
● Consistent beam profile offers reliable performance

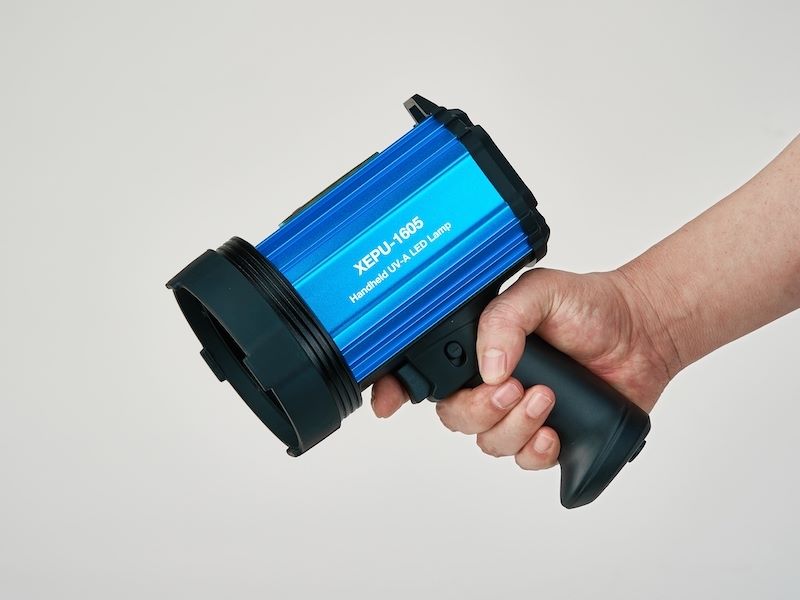

Figure below: portable 365nm NDT UV Lamp XEPU-1605, ideal for all your detection applications
NDT UV Lamps Selection Guide
The XEPU Handheld 365nm NDT UV Lamps offer four models of different UV intensities to better fit your NDT needs.
| NDT UV Lamp | Light Source | UV Intensity at 15 in (38 cm) | White Light Intensity | Visible Light Emission | Power Supply |
| XEPU-1603 | 3 UV-A LEDs 1 white light LED | 4,500 µW/cm2 | > 3,000 lux | < 8 lux | 100-240V AC or built-in battery |
| XEPU-1604 | 4 UV-A LEDs 1 white light LED | 6,000 µW/cm2 | > 3,000 lux | < 8 lux | 100-240V AC or built-in battery |
| XEPU-1605 | 5 UV-A LEDs | 7,000 µW/cm2 | N/A | < 8 lux | 100-240V AC or built-in battery |
| XEPU-1609 | 9 UV-A LEDs | 20,000 µW/cm2 | N/A | < 18 lux | 100-240V AC or built-in battery |
Standard Package
The standard package of the NDT 365nm Handheld UV-A Lamp XEPU-1605 includes:
1. The NDT 365nm Handheld UV-A Lamp XEPU-1605
2. A pair of UV protection glasses XP-100
3. User manual
4. Certificate
5. Warranty card
You can also order a stand for stationary use.
UV Inspection Lights are used in Non-Destructive Testing (NDT) for fluorescing fluorescent magnetic inks and fluorescent dye penetrants. UV light or black light with a peak wavelength of 365nm creates the optimal viewing conditions.
XEPU manufactures a range of mains and battery powered, handheld 365nm UV lamps and torches for NDT applications. This includes portable UV LED flashlights and handheld UV LED lamps which are suitable for ISO 9934-3:2015 and ISO 3452-4:2013 applications.
